FRP Grating for Chemical Plants
Specialized FRP grating engineered with advanced vinyl ester resins to withstand aggressive chemical attack in processing facilities, refineries, and industrial plants
Gallery
Product Overview
FRP Grating for Chemical Plants Overview
Our FRP grating for chemical plants is formulated using premium vinyl ester resin systems specifically selected for their exceptional resistance to acids, caustics, solvents, and oxidizing agents. This specialized formulation ensures long-term structural integrity in environments where standard FRP or steel grating would rapidly degrade.
The molded construction creates a homogenous, one-piece panel with no layers or coatings that can delaminate. The grit-embedded walking surface provides reliable slip resistance even when exposed to chemical spills, while the open grid design allows liquids to drain freely and prevents hazardous accumulation.
With a service temperature range up to 300°F (150°C) and resistance to over 300 industrial chemicals, this grating is the preferred choice for chemical processing units, acid storage areas, battery rooms, and refinery walkways where safety and durability are paramount.

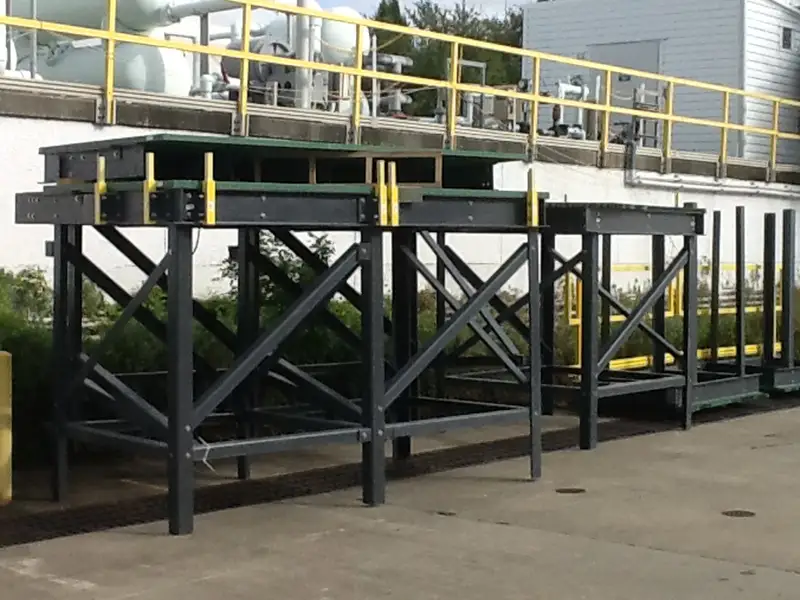

FRP Grating for Chemical Plants — engineered for durability and performance
Specifications
Technical Specifications
FRP Grating for Chemical Plant — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Resin System | Vinyl Ester (Standard) / Isophthalic Polyester (Economy) |
| Panel Size | 48" × 96" (1219mm × 2438mm) standard |
| Thickness | 1.0" / 1.5" / 2.0" (25mm / 38mm / 50mm) |
| Mesh Pattern | 1.5" × 1.5" square mesh (38mm × 38mm) |
| Chemical Resistance | 300+ chemicals including acids, bases, solvents |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Slip Resistance | ASTM C1028 — Wet COF ≥ 0.85 |
| Fire Rating | ASTM E84 Class 1 (Flame Spread < 25) |
Features
Features & Benefits
FRP Grating for Chemical Plant — Key Features
Advanced engineering for superior performance
Premium Vinyl Ester Resin
Advanced vinyl ester formulation provides superior resistance to over 300 chemicals including sulfuric acid, hydrochloric acid, sodium hydroxide, and industrial solvents commonly found in processing plants.
High Temperature Capability
Continuous service capability up to 300°F (150°C) with vinyl ester resin. Maintains structural integrity in hot chemical processing areas where standard resin systems would soften or degrade.
Slip-Resistant Grit Surface
Embedded silica grit surface delivers wet COF of 0.85 or higher, providing exceptional traction for workers even when grating is covered with chemical spills, water, or process fluids.
One-Piece Molded Construction
Homogenous molded panel with no coatings, layers, or bonded surfaces that can delaminate. Consistent corrosion resistance throughout the entire cross-section of the grating.
Self-Draining Open Design
60% open area allows chemical spills to drain immediately, reducing slip hazards and preventing dangerous pooling of corrosive liquids on the walkway surface.
Spark & Non-Conductive Safety
Non-sparking and electrically non-conductive material eliminates ignition risk in volatile chemical environments and provides electrical safety near high-voltage equipment.
