FRP Grating
Corrosion Resistant Walkway Grating
Heavy-duty FRP grating designed to withstand the harshest chemical and marine environments while providing safe, slip-resistant pedestrian access
Gallery

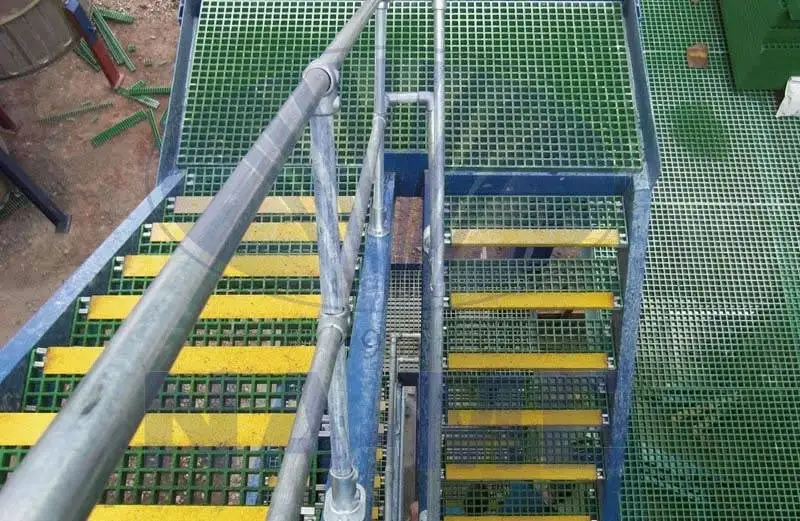

Offshore Platform Installation

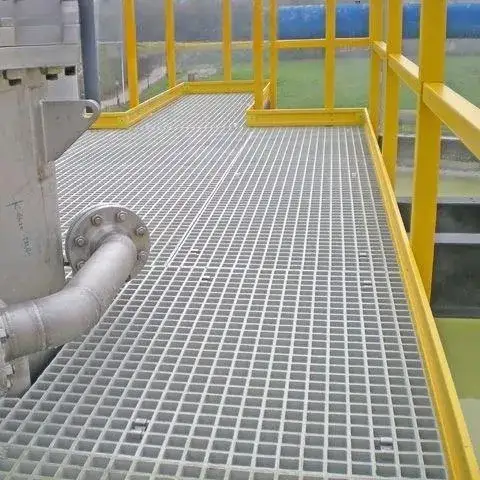

Chemical Plant Walkway
Industrial Facility Walkway
Surface Texture Detail
Product Overview
Corrosion Resistant Walkway Grating Overview
Our corrosion resistant walkway grating is engineered from high-quality fiberglass reinforced plastic (FRP) using a molded grating manufacturing process. This produces a one-piece construction that delivers exceptional resistance to chemicals, moisture, UV radiation, and extreme temperatures — making it the ideal choice for walkways in aggressive environments.
Unlike steel grating which corrodes rapidly in chemical and marine settings, our FRP walkway grating maintains its structural integrity for decades with minimal maintenance. The slip-resistant surface is molded directly into the grating pattern, providing reliable pedestrian traction even when wet or contaminated with oils and chemicals.
Available in multiple resin systems including vinyl ester and isophthalic polyester, our corrosion resistant grating can be tailored to specific chemical exposures. The lightweight material (70% lighter than steel) reduces structural loading and simplifies installation without requiring heavy lifting equipment.
Corrosion Resistant Walkway Grating — engineered for durability and performance
Specifications
Technical Specifications
Corrosion Resistant Walkway Gr — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Material | FRP (Fiberglass Reinforced Plastic) — Vinyl Ester / Isophthalic Polyester |
| Panel Size | 48" × 96" (1219mm × 2438mm) standard |
| Thickness | 1.0" / 1.5" / 2.0" (25mm / 38mm / 50mm) |
| Load Capacity | Up to 750 psf (36 kPa) concentrated load |
| Surface Finish | Concave grit top surface — silica sand embedded |
| Fire Rating | ASTM E84 Class 1 (Flame Spread < 25) |
| Operating Temperature | -40°F to +200°F (-40°C to +93°C) |
| Color | Yellow, Gray, Green, Orange (custom colors available) |
Features
Features & Benefits
Corrosion Resistant Walkway Gr — Key Features
Advanced engineering for superior performance
Superior Corrosion Resistance
Engineered with vinyl ester or isophthalic polyester resins to resist acids, alkalis, solvents, and saltwater. Ideal for chemical plants, refineries, and offshore platforms where steel fails within months.
Integrated Slip-Resistant Surface
Concave grit surface with embedded silica sand delivers a wet COF ≥ 0.8, exceeding OSHA slip-resistance standards for pedestrian walkways in all weather conditions.
Lightweight & Easy to Install
70% lighter than steel grating — reduces structural loading and enables manual installation without cranes. Panels can be cut on-site using standard carbide-tipped tools.
Low Maintenance Lifecycle
No painting, coating, or galvanizing required. The non-porous surface resists staining and is easily cleaned with pressure washing, reducing lifetime maintenance costs by up to 60%.
Non-Conductive & Spark-Resistant
FRP material is electrically non-conductive and spark-resistant, making it safe for use in electrical substations, battery rooms, and potentially explosive atmospheres.
Fire Retardant Formulation
Meets ASTM E84 Class 1 flame spread rating with less than 25 flame spread index. Self-extinguishing properties enhance workplace safety in fire-sensitive areas.
