Industrial Walkway
FRP Grating Walkway
Molded fiberglass grating walkway panels with superior slip resistance and corrosion protection for industrial walkways, platforms, and access routes.
Gallery

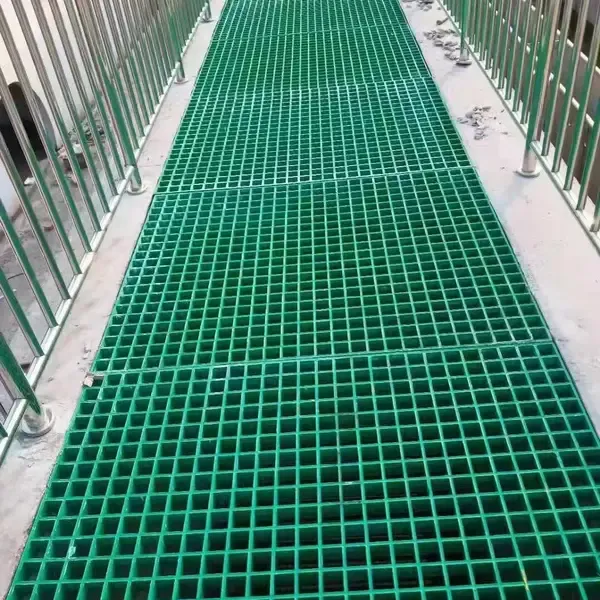

Elevated FRP Walkway Access
Chemical Plant Walkway
Walkway Panel Installation
Overview
Versatile FRP Grating Walkway for Heavy Industrial Traffic
Our FRP grating walkway panels are compression-molded from premium-grade fiberglass reinforced polyester resin, creating a robust one-piece construction that withstands continuous heavy foot traffic, equipment loads, and chemical exposure. The integral diamond-grit surface provides reliable slip resistance in wet, oily, or icy conditions.
Each panel is designed for quick installation on existing steel or aluminum support structures using standard fastening systems. Panels interlock seamlessly for continuous walkway runs. At only 3.5 psf for 1.5 in thick panels, the lightweight construction allows easy handling by a single worker without mechanical lifting.
Available in multiple thicknesses (1.0 in, 1.5 in, 2.0 in), panel sizes up to 4 ft × 12 ft, and a standard safety-yellow color option for high-visibility walkway demarcation. Fire-retardant and UV-stabilized grades are available for outdoor and hazardous-area installations.
FRP Grating Walkway — engineered for durability and performance
Specifications
Technical Specifications
FRP Grating Walkway — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Resin System | Isophthalic Polyester / Vinyl Ester |
| Glass Content | 60-65% by weight |
| Panel Dimensions | 4 ft × 12 ft (1,220 × 3,660 mm) max |
| Thickness | 1.0 / 1.5 / 2.0 in (25 / 38 / 50 mm) |
| Load Capacity | 500 psf concentrated (2,440 kg/m²) |
| Fire Rating | ASTM E84 Class A / Class B options |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Color Options | Safety Yellow, Gray, Custom RAL |
Features
Features & Benefits
FRP Grating Walkway — Key Features
Advanced engineering for superior performance
Integral Anti-Slip Surface
Diamond-grit surface is molded directly into the panel — not applied as a coating — ensuring permanent slip resistance that won't wear off over time. Wet COF of 0.7+ exceeds OSHA 1910.22 standards.
Corrosion-Proof Construction
Will not rust, rot, or corrode — even in chemical plants, wastewater treatment facilities, and marine environments. Eliminates the need for painting, galvanizing, or periodic coatings.
Easy One-Person Installation
At just 3.5 psf for 1.5 in panels, a single worker can carry and position panels without cranes or lifting equipment. Modular panels cut easily with standard carbide-tipped tools for on-site adjustments.
Low Maintenance — Zero Coatings
No annual painting, no galvanizing touch-ups, no coating repairs. Pressure wash or hose down to clean — the color is integral, not painted on, so it never needs refinishing.
Non-Conductive Safety
Electrically non-conductive and non-sparking, making it ideal for use near electrical equipment, in hazardous classified areas, and around flammable materials.
UV-Stabilized for Outdoor Use
UV-inhibitor additives and surface veil protect against fiber blooming and color fading in direct sunlight, providing long-term aesthetics and structural integrity in outdoor installations.
