Industrial Solution
FRP Oil & Gas Applications
Corrosion-Resistant Composite Solutions for Upstream, Midstream & Downstream Operations
Gallery

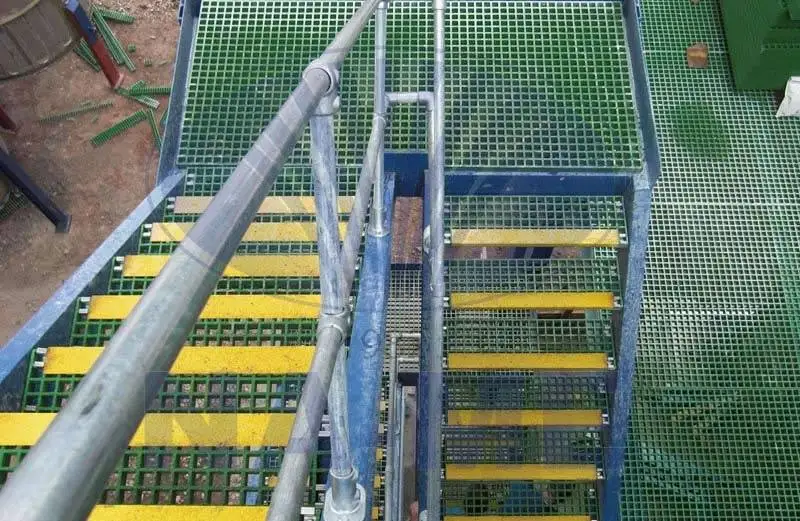

FRP Grating on Offshore Platform

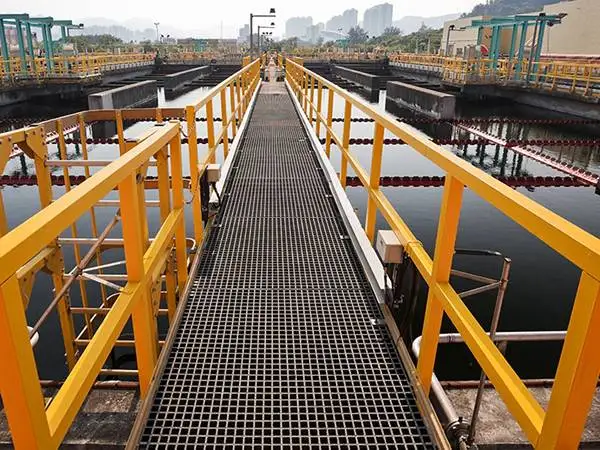

FRP Piping in Refinery
Product Overview
Comprehensive FRP Solutions for Oil & Gas Operations
FRP (Fiber Reinforced Polymer) has become an essential material in the oil and gas industry, offering exceptional corrosion resistance in the harshest environments. From offshore platforms to refineries and chemical processing facilities, FRP products including grating, walkways, piping, and structural profiles provide reliable service life exceeding 25 years without the constant maintenance required by carbon steel.
In upstream operations, FRP grating and platform walkways withstand exposure to crude oil, saltwater, hydrogen sulfide (H₂S), and extreme weather conditions on offshore rigs. Midstream applications utilize FRP piping and cable tray systems for their lightweight properties and resistance to corrosion from natural gas and produced water. Downstream refineries and petrochemical plants benefit from FRP's ability to handle aggressive chemicals, high humidity, and thermal cycling.
Our FRP solutions for oil and gas applications are manufactured using premium vinyl ester and polyester resins, with fire-retardant additives meeting ASTM E84 Class 1 flame spread ratings. All products are designed to comply with NACE SP0290 and ISO 14692 standards for FRP equipment in oil and gas service, ensuring safety and performance in critical applications.
FRP Oil & Gas Applications — engineered for durability and performance
Specifications
Technical Specifications
FRP Oil & Gas Applications — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Resin System | Vinyl Ester / Isophthalic Polyester |
| Fire Rating | ASTM E84 Class 1 / BS 476 Part 7 Class 1 |
| Service Temperature | -40°C to +180°C |
| Tensile Strength | 140–280 MPa (depending on orientation) |
| Corrosion Resistance | Excellent against H₂S, crude oil, brine, and chemical media |
| Design Standard | NACE SP0290 / ISO 14692 / ASTM D3916 |
| UV Protection | UV-inhibited resin with protective gel coat |
| Slip Resistance (Grating) | COF ≥ 0.6 (ASTM D2047) – silica grit top surface available |
Features
Features & Benefits
FRP Oil & Gas Applications — Key Features
Advanced engineering for superior performance
Superior Corrosion Resistance
FRP products resist attack from H₂S, sour crude, seawater, and chemical agents that rapidly degrade carbon steel, reducing replacement costs by up to 60% over the service life.
Lightweight & High Strength
Weighing 60-75% less than steel while maintaining comparable strength-to-weight ratios, FRP reduces structural loading on offshore platforms and simplifies handling and installation.
Fire Retardant & Non-Sparking
FRP formulations meet ASTM E84 Class 1 flame spread standards and are non-sparking, making them intrinsically safe for hydrocarbon processing and confined-space environments.
Low Lifecycle Cost
No painting, coating, or cathodic protection required. Minimal maintenance over 25+ year service life delivers the lowest total cost of ownership for oil and gas operators.
Custom Fabrication
FRP products can be factory-fabricated to exact dimensions, including cutouts for pipe penetrations, curved sections for tank wraps, and custom structural profiles.
