Rooftop Solar Walkway
FRP Walkway for Solar Rooftop
Lightweight composite walkway panels designed specifically for rooftop photovoltaic installations — safe maintenance access without damaging solar arrays.
Gallery

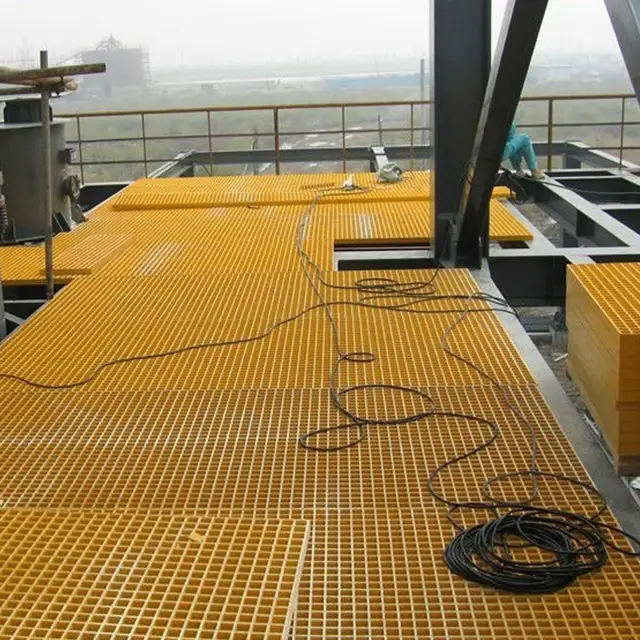

Rooftop Solar Walkway Installation

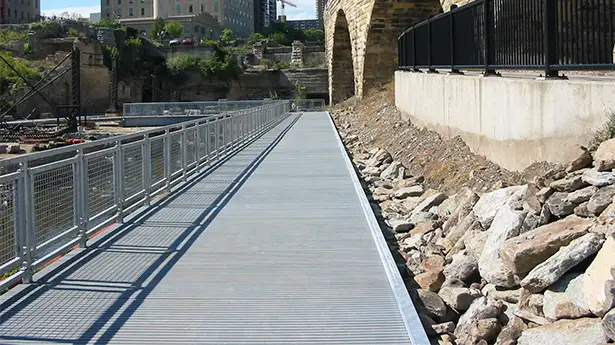

Anti-Slip FRP Walkway Surface
Overview
Lightweight FRP Walkway Engineered for Rooftop Solar Installations
Our FRP walkway for solar rooftops is specifically engineered to provide safe maintenance access across photovoltaic panel arrays without adding excessive dead load to the roof structure. At just 2.8 psf for the 1.0-inch panel, these composite walkways weigh 80% less than equivalent steel grating, making them the ideal choice for weight-sensitive rooftop solar installations where structural loading is a critical concern.
The panels feature a molded-in grit surface that delivers exceptional slip resistance (wet COF 0.8+) even in rain, dew, or morning frost conditions commonly encountered on rooftops. Unlike aluminum or steel walkways, FRP will not corrode, rust, or conduct electricity — eliminating galvanic corrosion risk when in contact with solar panel aluminum frames and providing safety near electrical equipment.
UV-stabilized isophthalic polyester resin with a certified UV surface veil ensures long-term performance under direct sunlight exposure without fiber blooming or color fade. Panels are available in standard widths of 12 in to 36 in and custom lengths up to 12 ft, with modular interlocking joints for continuous walkway runs between solar panel rows.
FRP Walkway for Solar Rooftop — engineered for durability and performance
Specifications
Technical Specifications
FRP Walkway for Solar Rooftop — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Material | Fiberglass Reinforced Polyester (FRP) — Isophthalic / Vinyl Ester |
| UV Resistance | UV-stabilized with certified UV surface veil — 10+ year outdoor durability |
| Load Capacity | 300 psf concentrated (1,464 kg/m²) — 1.0 in panel |
| Max Support Span | 36 in (914 mm) at 300 psf — 1.0 in panel |
| Panel Weight | 2.8 psf (13.7 kg/m²) — 1.0 in thickness |
| Slip Resistance | Wet COF 0.8+ — Molded-in grit surface exceeds OSHA 1910.22 |
| Fire Rating | ASTM E84 Class A (Flame Spread ≤ 25) — Self-extinguishing |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
Features
Features & Benefits
FRP Walkway for Solar Rooftop — Key Features
Advanced engineering for superior performance
Ultra-Lightweight for Rooftop Safety
At only 2.8 psf, our walkway panels are 80% lighter than steel and 50% lighter than aluminum — minimizing roof dead load while providing safe, code-compliant access for solar panel maintenance teams.
UV-Stabilized for Continuous Sun Exposure
Certified UV surface veil and UV-inhibitor additives prevent fiber blooming, surface degradation, and color fading even after years of direct rooftop sunlight. No painting or protective coating required.
Superior Anti-Slip Surface
Molded-in grit surface provides a wet COF of 0.8+, far exceeding OSHA requirements. The slip resistance is integral to the panel — not a coating — so it never wears off, even in rain, dew, or frost conditions common on rooftops.
Non-Conductive & Non-Corrosive
FRP is electrically non-conductive and non-sparking — critical safety near photovoltaic electrical systems. It will not corrode or cause galvanic reaction with solar panel aluminum frames, unlike steel or aluminum walkways.
Easy Modular Installation
Lightweight panels can be carried by a single worker and installed with standard fasteners on existing roof support structures. Modular interlocking design creates continuous walkway runs between solar panel rows with no special tools or equipment needed.
Zero Maintenance Lifecycle
No painting, no galvanizing, no coating repairs. FRP walkways are maintenance-free for the life of the installation. Simply hose down to clean — the integral color never needs refinishing and the UV protection lasts for decades.
