FRP Grating
Fiberglass Grating Walkway
Lightweight, high-strength fiberglass reinforced plastic grating for safe and durable pedestrian walkways in industrial environments
Gallery
Water Treatment Installation

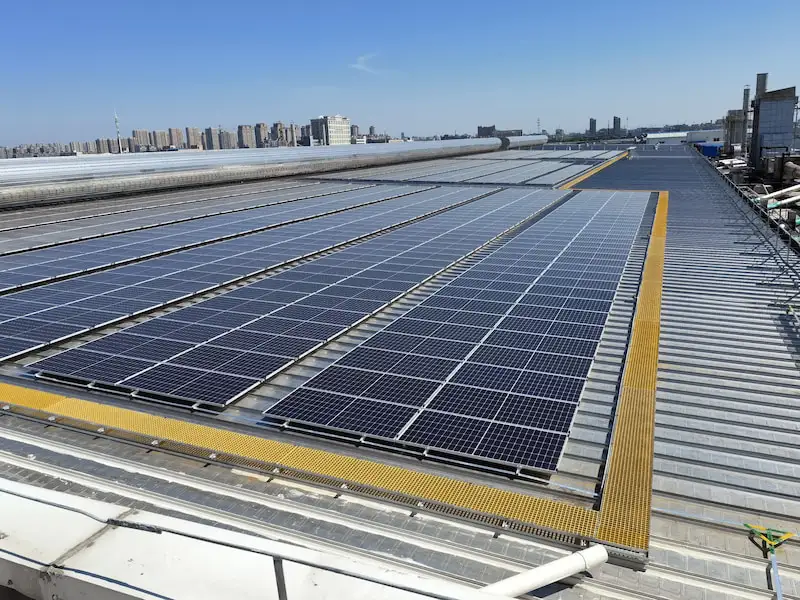

Mezzanine Walkway
Industrial Platform Access
Close-Up of Grating Surface
Product Overview
Fiberglass Grating Walkway Overview
Our fiberglass grating walkway products are manufactured using premium E-glass fibers and fire-retardant resin systems to deliver a durable, lightweight, and corrosion-free walking surface for industrial facilities. Each panel is precision-molded in a single piece for consistent strength and dimensional stability.
The open mesh design of fiberglass grating walkways allows light, air, and water to pass through freely, reducing wind uplift and preventing liquid accumulation. This self-draining feature makes it particularly suitable for outdoor platforms, mezzanines, and areas requiring high hygiene standards.
With a high strength-to-weight ratio, fiberglass grating walkway panels are easy to transport, cut, and install on-site. The integrated grit surface provides excellent slip resistance meeting OSHA safety requirements, while the non-conductive properties add an extra layer of electrical safety for workers.
Fiberglass Grating Walkway — engineered for durability and performance
Specifications
Technical Specifications
Fiberglass Grating Walkway — Technical Specifications
Detailed specifications and dimensional data
Dimensions
Standard dimensional options available for various installation requirements.
| Parameter | Value |
|---|---|
| Material | E-Glass Fiber + Isophthalic Polyester Resin |
| Panel Size | 48" × 144" (1219mm × 3658mm) max panel |
| Thickness Options | 1.0" (25mm), 1.5" (38mm), 2.0" (50mm) |
| Mesh Pattern | Square mesh — 1.5" × 1.5" (38mm × 38mm) standard |
| Open Area | 60% typical |
| Slip Resistance | ASTM C1028 — Wet COF ≥ 0.8 |
| Weight | 3.5 psf (17 kg/m²) for 1.5" panel |
| UV Protection | UV-inhibited resin with protective veil layer |
Features
Features & Benefits
Fiberglass Grating Walkway — Key Features
Advanced engineering for superior performance
High Strength-to-Weight Ratio
Designed with continuous E-glass fibers and premium resin for maximum strength at minimum weight. Supports heavy pedestrian and light maintenance vehicle traffic without excessive structural support.
Self-Draining Open Mesh Design
60% open area allows water, snow, and debris to pass through freely. Prevents ponding, ice formation, and slippery conditions while allowing natural light to reach lower levels.
OSHA-Compliant Slip Resistance
Factory-applied grit top surface exceeds OSHA requirements for slip-resistant walkways, providing secure footing in wet, oily, or icy conditions across all industrial environments.
Rust-Free & Corrosion Resistant
Unlike steel or aluminum, fiberglass grating will never rust, corrode, or deteriorate from moisture exposure. Ideal for water treatment, food processing, and marine applications.
Easy Field Modification
Panels can be cut, drilled, and shaped on-site using standard power tools. No specialized fabrication equipment or welding required for custom fit around pipes and equipment.
Electrically Non-Conductive
Provides inherent electrical insulation for worker safety near live equipment. Reduces risk of electrical shock in substations, transformer yards, and power generation facilities.
